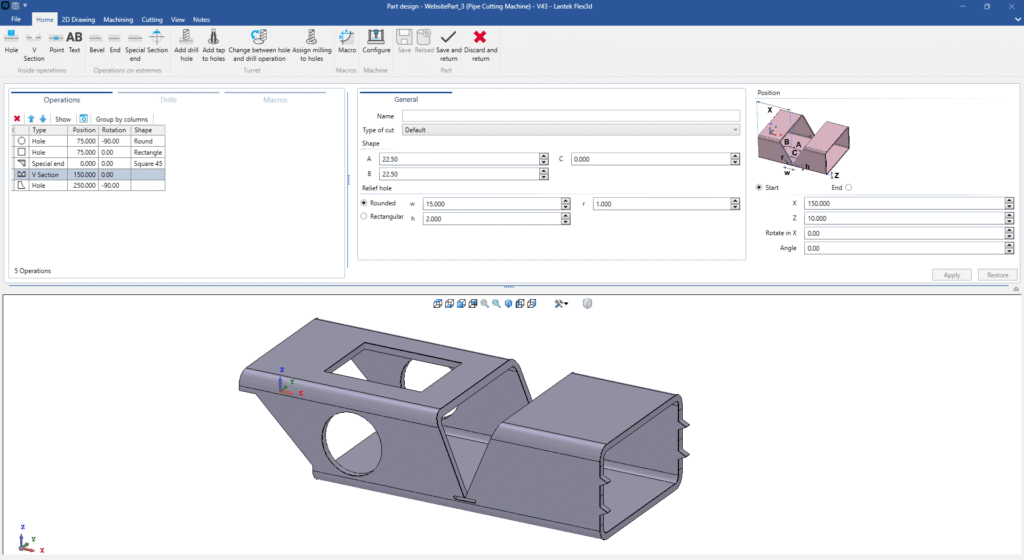

Lantek Flex3D Tubes is a CAD / CAM software system for designing, nesting and cutting parts of tubes and pipes.
Lantek has used all of its experience and proficiency gained in design systems and programming for sheet metal cutting, punching and bending machines and applied to the tube cutting sector – regardless of the type of machine.
Lantek Flex3D Tubes integrates with various kinds of tubular geometry importers such as SAT and IGES. This software allows 3D design to be simple and intuitive. It gives a true vision of the resulting design profile that will eventually be cut on a machine.
This system is a parametric system which allows the user to change the values of any operations previously made, including changes to the initial parameters of each tube (lengthening, shortening, change of diameter).

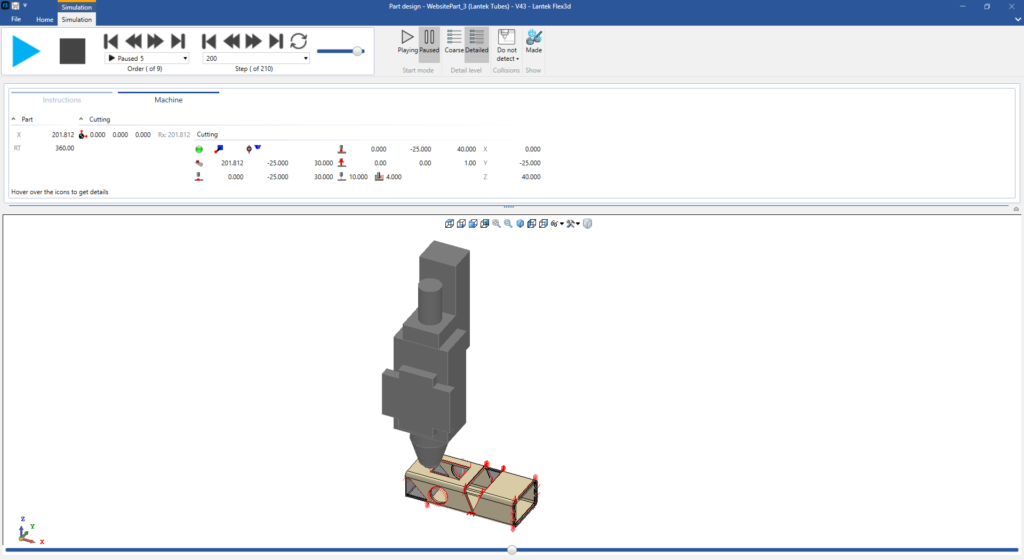

Once the design stage is complete, the user can simulate optimization of the tube (nesting) and the path followed by the cutting head. The software will directly generate the NC program in order to send this optimization to the machine.
A2N 3D Importer provides powerful 3D CAD/CAM capabilities by directly importing 3D CAD files and automatically detecting material and component structures such as Beam and Tubes. This module enhances Lantek Flex 3D by offering accurate parts streamlining the transition from design to production. A2N 3D Importer improves data management and boosts efficiency in complex 3D manufacturing environments.

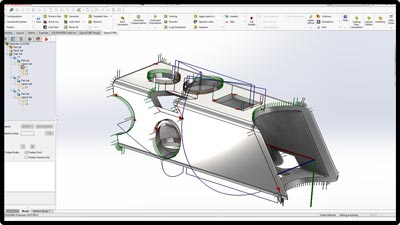

With the ability to break down an entire tube assembly, SigmaTUBE SW can separate parts by nesting tasks, nest each part for optimum yield, and apply advanced toolpath techniques all in a matter of seconds. SigmaTUBE software supports laser and plasma cutting for tubes of any shape along with all common structural profiles.
SigmaTUBE SW automatically examines the entire assembly to identify which parts are applicable for programming. Parts are then automatically grouped according to their profile and material. Quoting the complete part assembly is made easy by integrating SigmaQUOTE to provide support for costing and scheduling work orders.

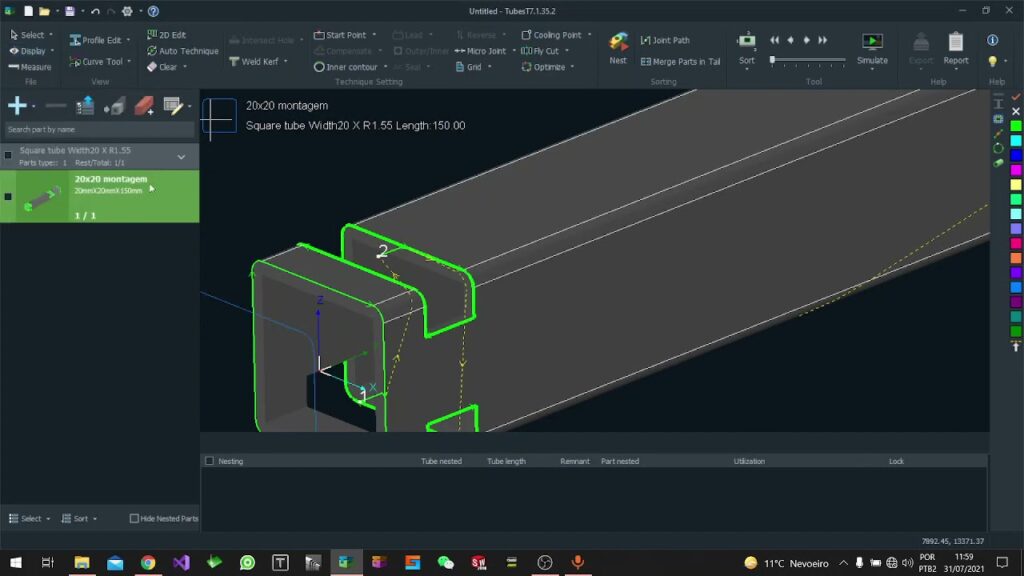

Intelligent NestingTubesT supports nesting of parts of various shape all at once with minimum waste.
Intelligent NestingTubesT supports nesting of parts of various shape all at once with minimum waste.
Quick ImportParts or assemblies(IGS format) of multiple shapes can be imported in TubesT in a one-time operation to improve efficiency.
Drawing ModificationTo solve the common problems in tube cutting, like through-hole precision and parts-assemble interference, TubesT developed flexible and easy-to-use functions for user to adjust parts drawing.
Automatic SortingTube and profiles can finish automatic toolpath sorting by a simple click. For square and round tube, TubesT allows to generate toolpath by tube face sequence or by tube length interval.
