Description
cncKad is the only system that integrates CAD/CAM capabilities in the same module. Geometry, dimensions, and technology (punching/cutting) are completely associative; when you modify the geometry, cncKad automatically updates the dimensions and punching or cutting definitions.
More than 1300 different machine models from over 160 manufacturers have been driven by cncKad to date, and more are added as needed. This powerful solution also ports parts from one technology or machine type to another, such as from punch to laser.
cncKad, with a modular and responsive ribbon interface, features these advanced technologies:
During import, you can check and fix your parts’ geometry, then batch process them according to your machine type. AutoNest automatically arranges the parts on your sheets according to material and thickness. You can also organize the parts on your sheets manually. Features such as collision-less mode, remnant management, and in-built warnings help steer you to cost-effective nesting solutions.
Generate NC codes for the resulting nesting solution, simulate it, create detailed production reports, and send your daily job/order to production.
AutoNest efficiently utilizes the sheet material, saving time and money. Feature-rich AutoNest includes:
- Importing job orders from ERP/MRP programs
- Creating automatic DXF to NC (Daily Job)
- True Shape or rectangular nesting for optimized solutions
- Generating multiple material nests
- Producing multiple sheet solutions
- Filling holes with small parts
- Common cuts to reduce material wastage and machine time
- Reusing remnants
- Interactive manual nesting
- Estimating job production costs
- Generating detailed production reports
For instructional videos on this topic products, go to Metalix YouTube Channel.

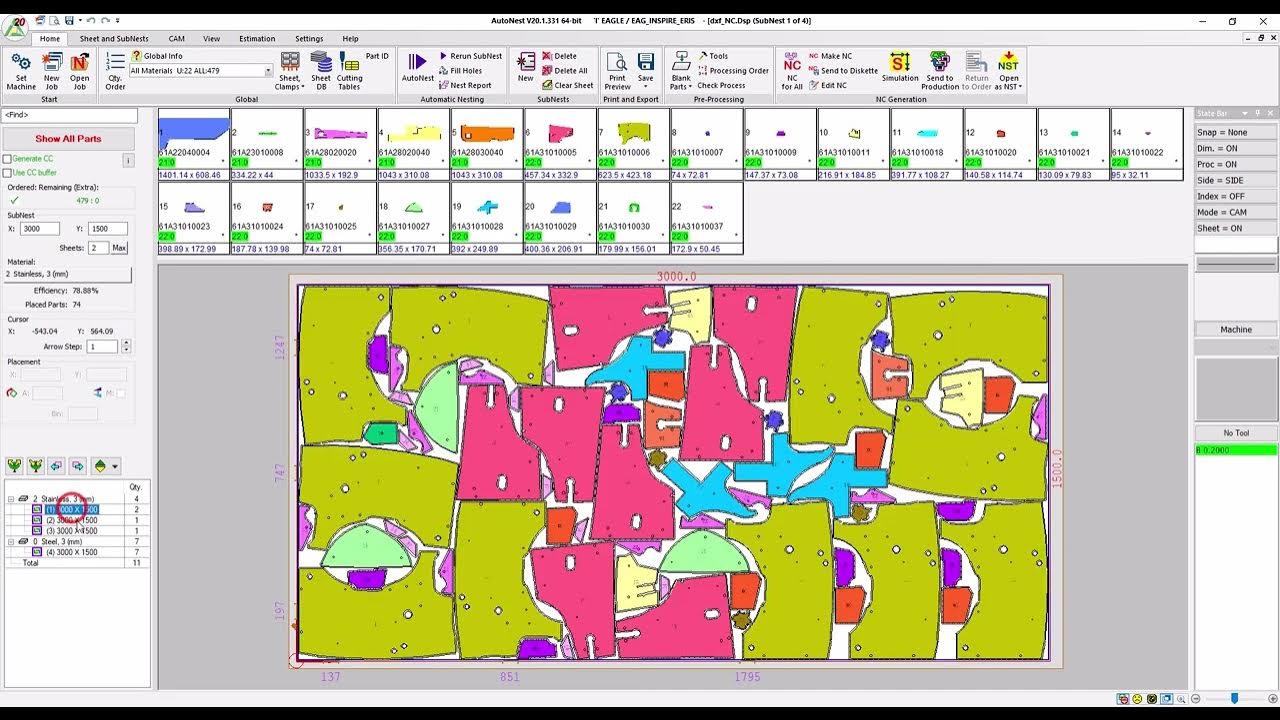

Fully Automated Nesting
Fully Automated Nesting provides a variety of nesting methods, from rectangular to advanced True Shape.
AutoNest is a powerful nesting tool, offering a complete range of versatile methods for automatic and manual nesting to achieve the best possible nesting solutions – from rectangular to advanced True Shape.
AutoNest calculates efficient nesting solutions by considering combinations of rotated and mirrored parts, grouping, group arrays, turret-based nesting, part priority, sheet or remnant size and direction and supporting a minimum possible number of SubNests.
Automatic nesting options:
- Rectangular
- Standard True Shape
- Advanced True Shape with AutoNest Pro
